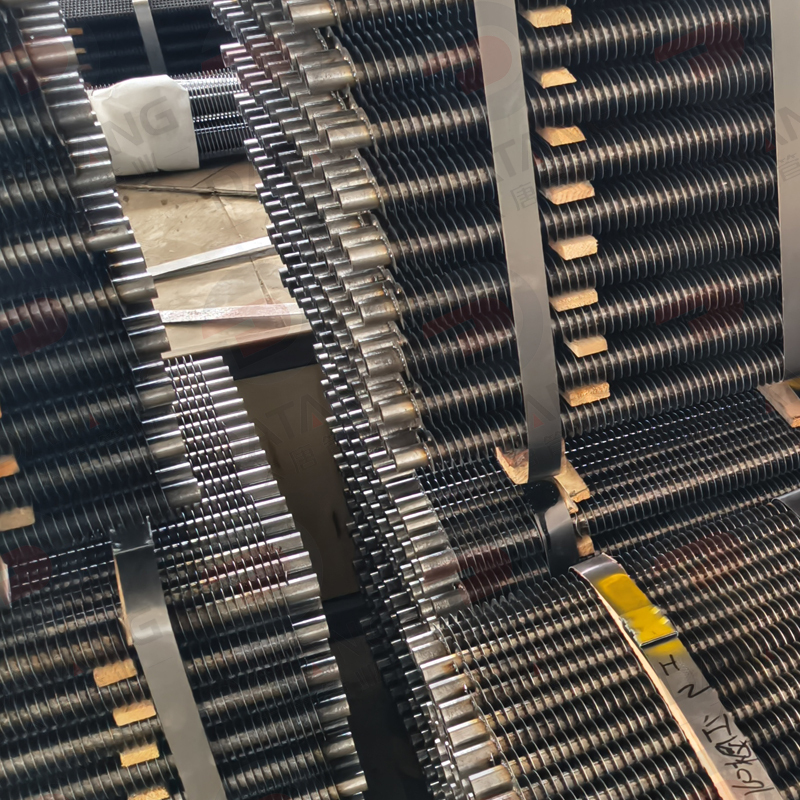

Laser welded finned tubes are widely used in high-performance condenser heat exchangers due to their excellent heat transfer efficiency, corrosion resistance, and strong mechanical bonding performance.
The manufacturing process combines stainless steel base tubes with stainless steel fins through advanced continuous fiber laser welding technology. Compared with traditional welded or extruded finned tubes, laser welded finned tubes provide a stronger fin-to-tube connection, minimal thermal deformation, and improved long-term reliability in demanding heat exchanger applications.
Common applications include condensers, evaporators, air coolers, refrigeration systems, chemical processing equipment, power generation systems, and industrial heat recovery units.
The raw materials are carefully selected according to the operating environment and corrosion requirements.

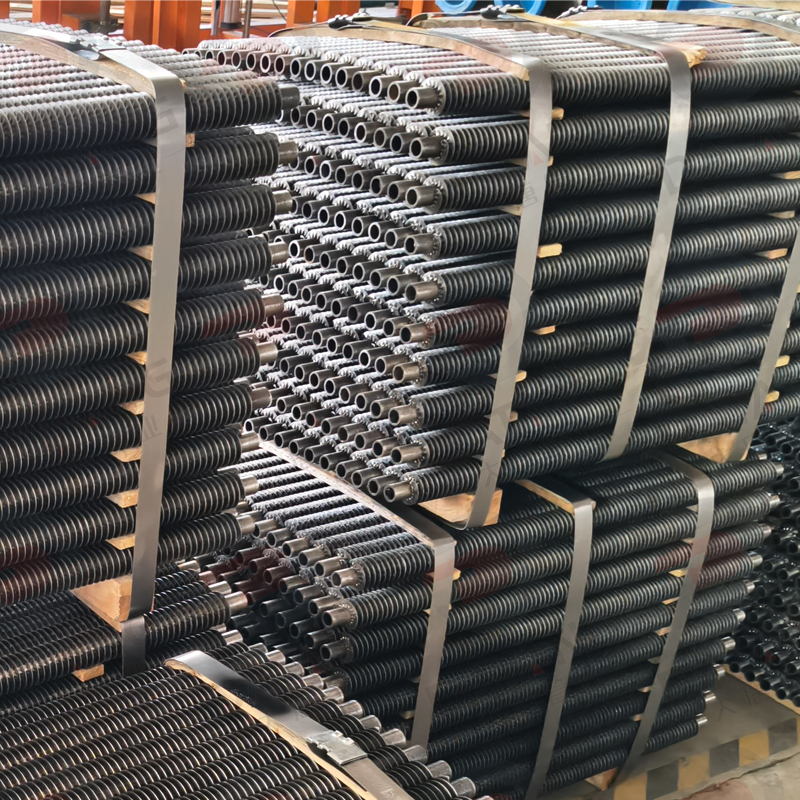

Common materials include 304 stainless steel, 316 stainless steel, and 316L stainless steel. The base tube is usually manufactured from seamless stainless steel tubing, while the fins are made from stainless steel strips.
Before welding, all materials undergo surface preparation processes to ensure welding quality and bonding strength.
| Process | Description |
|---|---|
| Material Selection | 304, 316, and 316L stainless steel are commonly used |
| Base Tube | High-strength seamless stainless steel tube |
| Fin Material | Stainless steel strip |
| Straightening | Removes deformation and improves dimensional accuracy |
| Cleaning | Removes oil, dust, and surface contaminants |
| Deburring | Eliminates sharp edges and improves welding consistency |
Proper surface preparation ensures stable laser energy absorption and creates a clean welding interface between the fin and tube.
The finned tube is manufactured using a continuous fiber laser welding system under an inert gas protection environment.
During the welding process, a precisely focused laser beam instantly melts the contact area between the stainless steel fin and the tube surface. The molten metal rapidly solidifies, forming a strong metallurgical bond without the need for additional filler materials.
The laser welding process achieves:
| Parameter | Specification |
|---|---|
| Welding Method | Continuous fiber laser welding |
| Protection Gas | Inert gas shielding (Argon commonly used) |
| Filler Material | No filler metal required |
| Welding Type | Full penetration metallurgical bonding |
| Weld Seam Width | 0.1 – 0.3 mm |
| Heat Affected Zone (HAZ) | Approximately 0.1 – 0.5 mm |
| Laser Heat Input | Low heat input with minimal distortion |
| Bond Strength | High-strength fin-to-tube connection |
The narrow and strong welded joint provides excellent thermal conductivity between the fin and tube, improving overall heat exchanger performance.

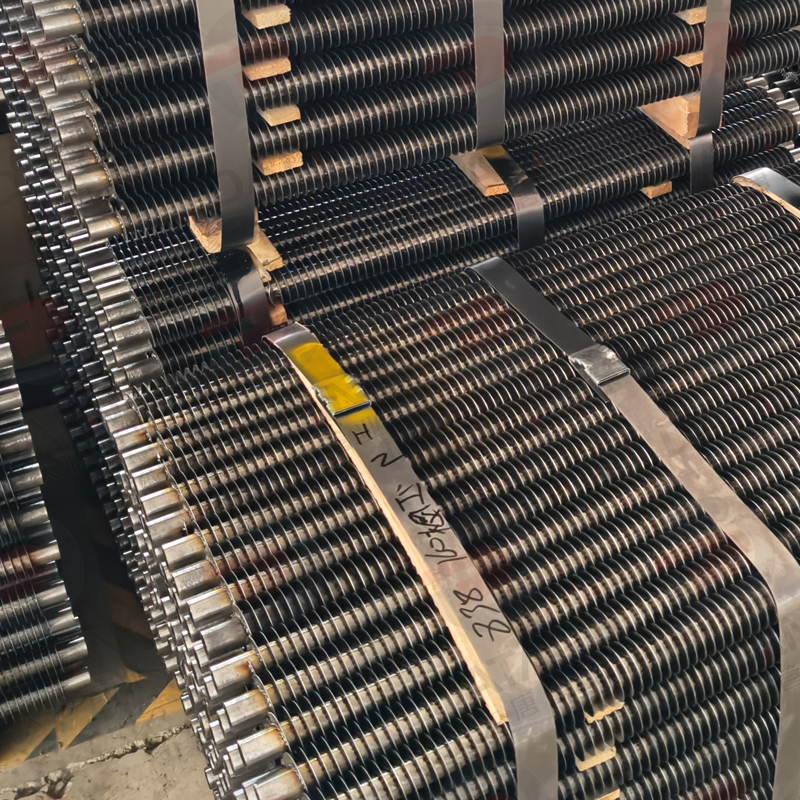

Using stainless steel materials such as 316L provides excellent resistance against corrosive environments, making these tubes suitable for chemical, marine, and industrial applications.
The concentrated laser energy produces a very small heat affected zone, reducing tube deformation and maintaining dimensional accuracy.
The full penetration laser weld creates a permanent metallurgical connection that can withstand vibration, thermal cycling, and long-term operation.
Because no welding wire, solder, or additional filler materials are required, laser welding produces a cleaner manufacturing process with fewer impurities.
| Industry | Applications |
|---|---|
| HVAC & Refrigeration | Condensers, evaporators, cooling systems |
| Chemical Industry | Corrosive fluid heat exchangers |
| Power Generation | Steam condensers and heat recovery systems |
| Marine Engineering | Saltwater-resistant heat exchangers |
| Industrial Equipment | Air coolers and process heat exchangers |
Laser welded stainless steel finned tubes provide an advanced solution for condenser heat exchanger manufacturing. Through precise fiber laser welding technology, stainless steel fins are permanently bonded to seamless stainless steel tubes with excellent heat transfer performance, corrosion resistance, and structural durability.
With advantages such as narrow weld seams, minimal heat affected zones, and no filler metal requirements, laser welded finned tubes are an ideal choice for high-efficiency and long-life heat exchanger systems.
