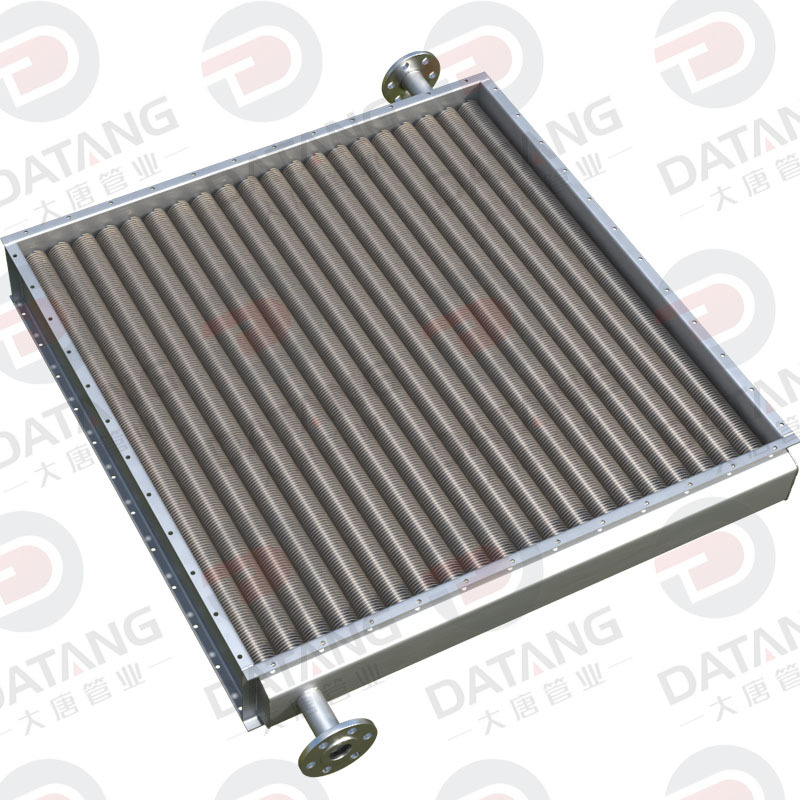

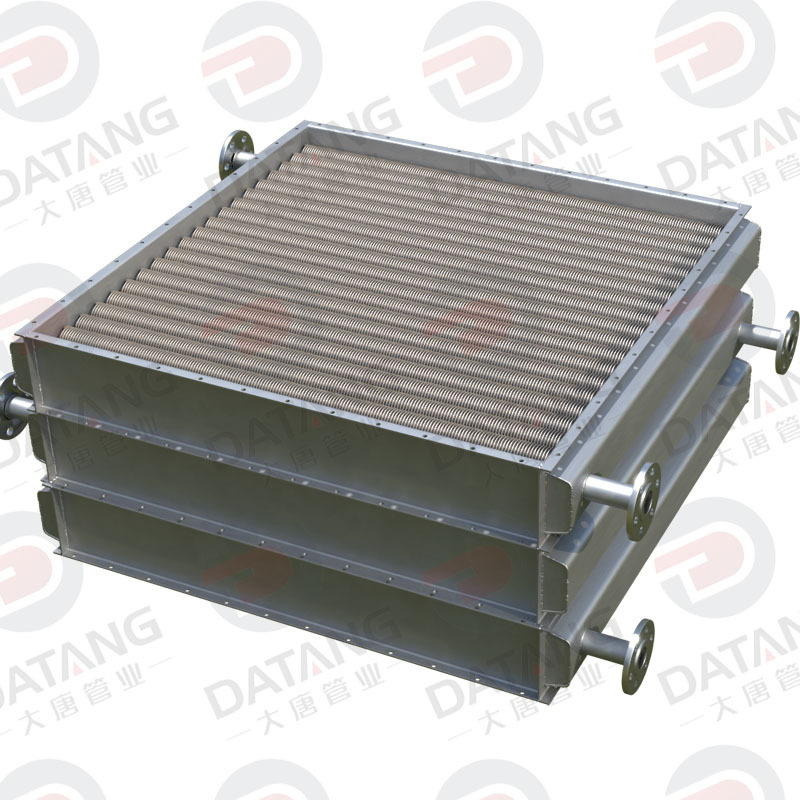

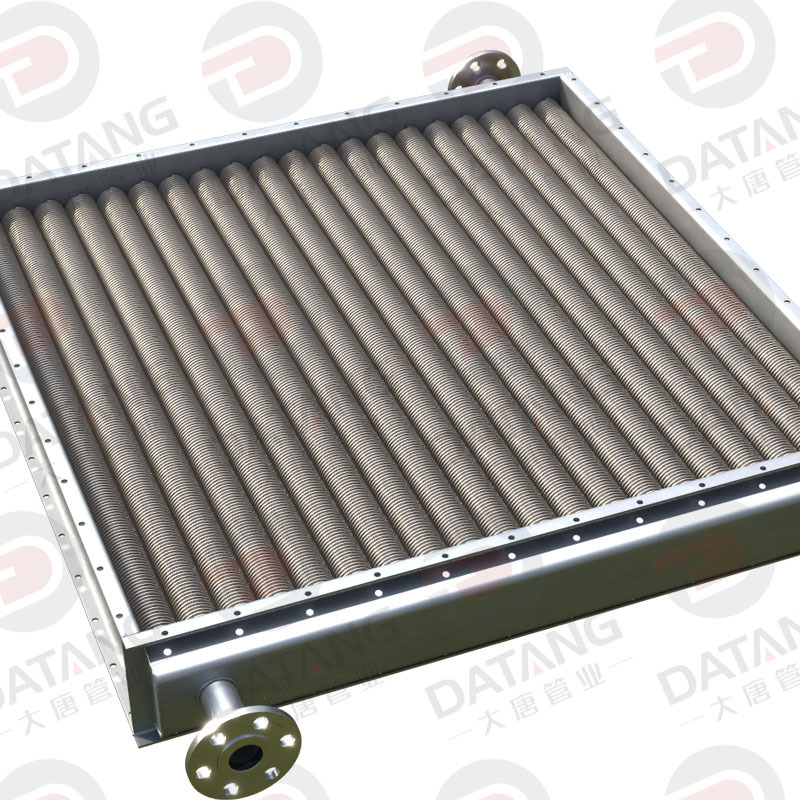

A steel-aluminum rolled finned tube heat exchanger is an efficient air-side heat transfer solution that combines the mechanical strength of a steel base tube with the excellent thermal conductivity of aluminum fins.
The aluminum fin strip is mechanically rolled onto the outer surface of the steel tube, creating close and uniform contact between the tube and fins. Heat from steam, hot water, thermal oil, or other process media flows inside the steel tube, transfers through the tube wall, and spreads across the aluminum fins. The enlarged fin surface then transfers heat efficiently to surrounding air.
Steel-aluminum rolled finned tube heat exchangers are widely used in industrial heating, HVAC systems, drying equipment, heat recovery units, cold storage systems, and process cooling applications.
Steel-aluminum rolled finned tube heat exchangers transfer heat through a combination of conduction and convection.
A hot or cold working medium flows through the steel tube. Common media include:
The temperature difference causes heat to pass through the steel tube wall to the aluminum fin structure.
The aluminum fins provide a much larger external heat transfer area than a plain tube. Air flows naturally or is forced by a fan through the spaces between the fins.
As air contacts the fin surface, heat is transferred between the finned tube and the air stream. The spiral fin geometry can also promote air disturbance and improve heat transfer on the air side.
For heating applications, heat moves from the internal medium to the air. For cooling applications, heat moves from the air to the internal cooling medium.
The steel tube provides the primary pressure-bearing structure and serves as the flow channel for the internal medium.
Common base-tube materials include:
Steel base tubes provide good mechanical strength and can be selected according to operating pressure, temperature, fluid properties, and corrosion requirements.
The external fin is usually made from aluminum strip, selected for its low weight and strong thermal conductivity.
Typical advantages of aluminum fins include:
The fin profile, height, thickness, and pitch can be customized to balance heat transfer, airflow resistance, dust accumulation, cleaning requirements, and product cost.
In the rolling process, the aluminum strip is mechanically formed and tightly attached to the steel base tube. This creates extensive contact between the fin and tube surface without using brazing filler metal.
A properly manufactured rolled fin structure provides stable contact and reliable performance in conventional heating, ventilation, and cooling conditions. For applications involving severe vibration, extreme temperature cycling, highly corrosive environments, or very high temperatures, material selection and connection type should be evaluated carefully.
Aluminum has substantially higher thermal conductivity than ordinary carbon steel, helping distribute heat rapidly across the fin surface.
The rolled fin structure also greatly increases the external heat transfer area. Compared with plain steel tubes, finned tubes can provide a much larger air-contact surface within the same equipment footprint.
Actual thermal performance depends on:
With an optimized design, steel-aluminum rolled finned tube heat exchangers can offer an efficient and compact solution for air heating and cooling duties.
The steel base tube carries the internal pressure and provides mechanical stability. This makes the heat exchanger suitable for applications using hot water, steam, thermal oil, or other pressurized process fluids, provided the tube material and wall thickness are correctly selected.
The aluminum fins primarily increase the external heat transfer area, while the steel tube provides the required structural strength.
Aluminum is much lighter than steel and copper. Using aluminum fins reduces the total weight of the heat exchanger, which can provide benefits such as:
Aluminum naturally forms a thin oxide layer that offers protection in normal atmospheric environments. However, aluminum fin performance may be affected by salt spray, acidic gases, alkaline cleaning agents, or other corrosive conditions.
For improved durability, available protection options may include:
The appropriate anti-corrosion solution should be selected based on humidity, chemical exposure, operating temperature, and site conditions.
Steel-aluminum rolled finned tube heat exchangers offer a practical balance between performance and cost:
Well-designed aluminum fins have relatively smooth surfaces and regular fin spacing, which helps facilitate cleaning. Proper fin spacing is especially important in dusty environments, where overly dense fins can increase fouling and airflow resistance.
Routine cleaning with suitable low-pressure air, water, or approved cleaning methods can help maintain airflow and long-term heat transfer performance.
Steel-aluminum rolled finned tube heat exchangers are commonly used in:
In commercial and industrial HVAC applications, these heat exchangers can be used for:
Typical energy-sector applications include:
They may be used for:
For highly corrosive gases or aggressive chemical environments, an engineering review is recommended to confirm whether aluminum fins are suitable.
Applications can include:
When designed for cooling duty and compatible refrigerants or secondary fluids, steel-aluminum rolled finned tube heat exchangers can be used in:
Finned heat transfer structures are also widely used in vehicle and mobile-equipment cooling systems. The exact tube and fin materials should be selected according to vibration, pressure, coolant chemistry, weight targets, and environmental exposure.
To select or design a steel-aluminum rolled finned tube heat exchanger, the following information should be considered:
Working medium
Steam, hot water, thermal oil, chilled water, glycol solution, air, or process gas.
Operating temperature and pressure
The steel tube material and wall thickness must meet the applicable pressure and temperature requirements.
Heat duty
Required heating or cooling capacity, inlet/outlet temperatures, and operating hours.
Airflow conditions
Air volume, airflow direction, air velocity, allowable pressure drop, and fan capacity.
Fin geometry
Fin height, thickness, pitch, fin density, and tube arrangement affect both heat transfer and air resistance.
Environmental conditions
Humidity, dust, salt spray, corrosive gas, cleaning chemicals, and outdoor exposure should be evaluated before selecting aluminum fins or protective coatings.
Maintenance access
The exchanger should allow sufficient access for periodic cleaning and inspection.
It is a heat exchanger that uses a steel tube as the pressure-bearing flow channel and aluminum fins rolled tightly onto the tube exterior to increase heat transfer area and improve air-side heat exchange.
Steel offers strength and pressure resistance, while aluminum offers excellent thermal conductivity and low weight. Combining them creates a cost-effective heat exchanger for many heating and cooling applications.
Normally, the aluminum fin is mechanically rolled or mechanically bonded onto the steel tube rather than welded. The rolling process creates close surface contact and a stable fin structure under suitable operating conditions.
Yes, provided the steel tube material, tube wall thickness, exchanger design, and operating conditions are suitable for the temperature and pressure of the steam or thermal oil system.
It depends on the specific environment. Aluminum performs well in many normal atmospheric conditions but may not be suitable for highly acidic, alkaline, chloride-rich, or salt-spray environments without appropriate protective measures. Coatings or alternative materials may be required.
Wider fin spacing is generally preferable for dusty air or applications requiring easy cleaning. Closer fin spacing can increase heat transfer area but may also increase airflow resistance and fouling risk.
| Item | Typical Options |
|---|---|
| Product name | Steel-aluminum rolled finned tube heat exchanger |
| Base tube material | Carbon steel, galvanized steel, seamless steel, low-alloy steel, stainless steel |
| Fin material | Aluminum strip |
| Fin connection | Mechanical rolling / rolled fin bonding |
| Internal medium | Steam, hot water, chilled water, thermal oil, glycol solution, process fluid |
| External medium | Air, ventilation air, process gas |
| Primary functions | Air heating, air cooling, heat recovery, drying, ventilation |
| Optional protection | Galvanizing, paint coating, epoxy coating, hydrophilic coating |
| Customizable parameters | Tube size, fin height, fin thickness, fin pitch, tube length, coil layout, surface treatment |
All dimensions, temperature limits, pressure ratings, heat-transfer capacity, and material selections should be confirmed through project-specific design calculations and applicable standards.
For a technical proposal or quotation, please provide:
We can help recommend a suitable steel-aluminum rolled finned tube heat exchanger configuration for your industrial, HVAC, heating, cooling, or heat recovery project.
