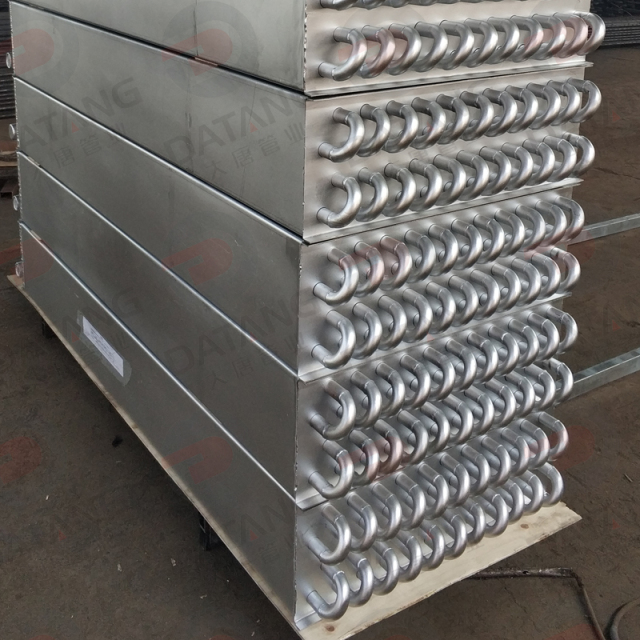

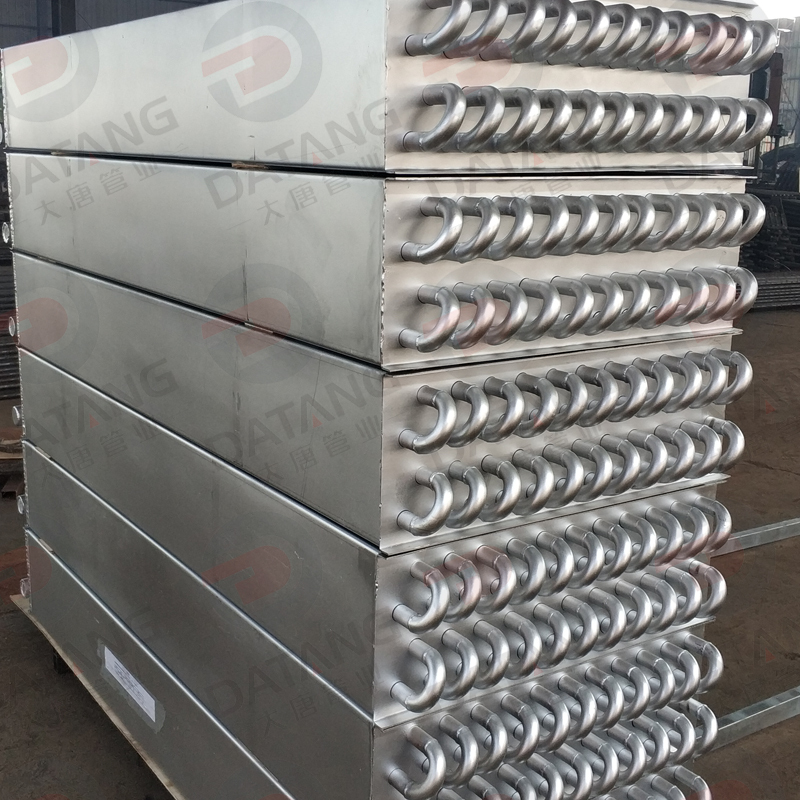

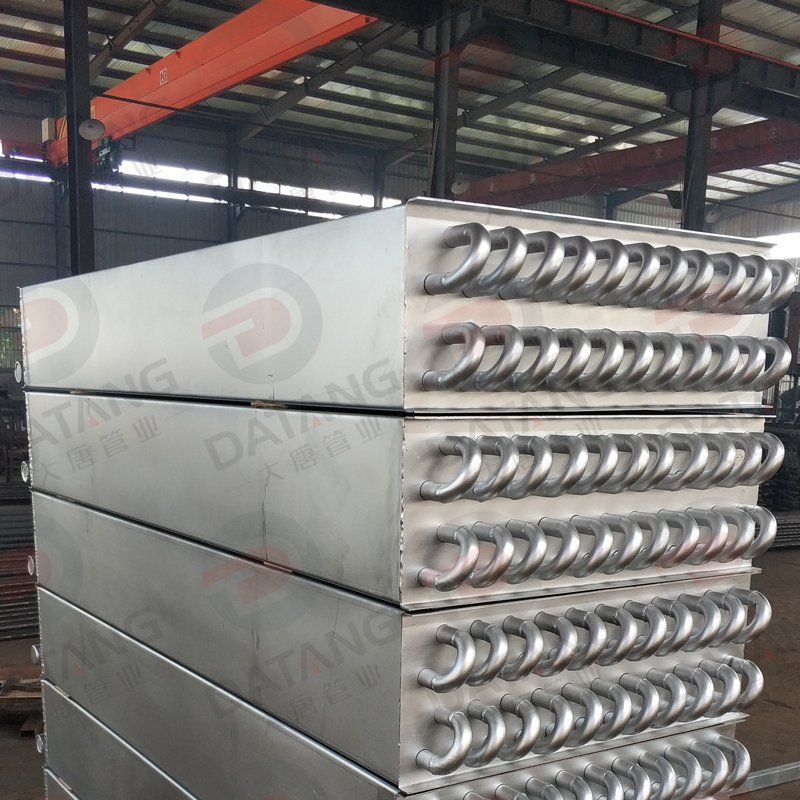

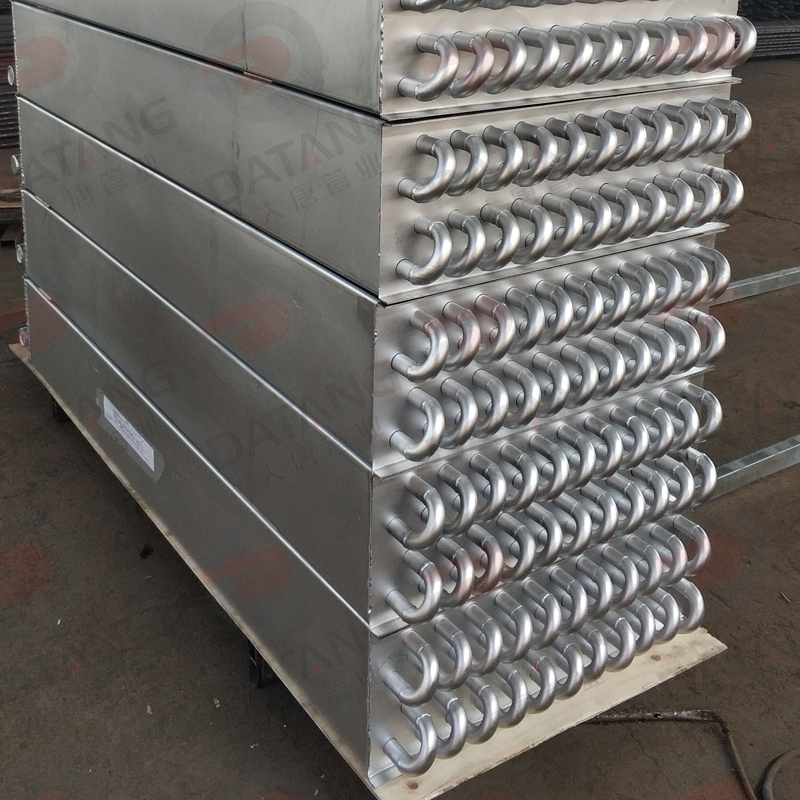

A tubular heat exchanger condenser is a high-performance heat transfer component that utilizes the evaporation and condensation of a working fluid inside a fully sealed vacuum tube shell to achieve efficient thermal transfer.
By using phase-change heat transfer technology, the condenser provides excellent thermal conductivity, outstanding temperature uniformity, flexible heat transfer area design, long-distance heat transmission capability, and precise temperature control.
Tubular heat exchanger condensers are widely used in industrial heat recovery systems, energy-saving equipment, thermal management systems, and applications requiring efficient and stable heat transfer.
However, the main limitation of tubular heat exchanger condensers is that their oxidation resistance and high-temperature resistance are relatively limited under extreme operating conditions.
To overcome this limitation, a ceramic heat exchanger can be installed at the front end of the system. Ceramic heat exchangers provide excellent high-temperature resistance and corrosion resistance, effectively solving challenges associated with harsh environments and improving the overall durability and reliability of the heat transfer system.
High Thermal Conductivity
Uses evaporation and condensation of the internal working medium to achieve rapid and efficient heat transfer.
Excellent Temperature Uniformity
The phase-change heat transfer process provides stable and nearly isothermal operation.
Flexible Heat Transfer Area Design
The heating and cooling side heat transfer areas can be customized according to application requirements.
Long-Distance Heat Transfer Capability
Suitable for systems where heat sources and heat sinks are located at different positions.
Precise Temperature Control
Provides stable thermal performance and improved temperature management.
Compact and Efficient Design
Vacuum tube structure improves heat transfer efficiency while reducing thermal losses.
| Specification | Description |
|---|---|
| Product Name | Tubular Heat Exchanger Condenser |
| Heat Transfer Method | Evaporation and condensation phase-change heat transfer |
| Structure Type | Fully sealed vacuum tube shell |
| Working Principle | Heat transfer through evaporation and condensation of internal working fluid |
| Thermal Performance | High thermal conductivity and efficient heat transfer |
| Temperature Characteristics | Excellent temperature uniformity / near-isothermal operation |
| Heat Transfer Distance | Suitable for long-distance heat transfer applications |
| Heat Transfer Area | Customizable according to system requirements |
| Temperature Control | Adjustable thermal management capability |
| Application Environment | Industrial heat recovery, thermal systems, energy-saving equipment |
| Main Limitation | Lower oxidation resistance and high-temperature performance compared with ceramic heat exchangers |
| Optional Solution | Front-end ceramic heat exchanger installation for high-temperature and corrosive environments |
| Ceramic Heat Exchanger Advantages | Excellent high-temperature resistance and corrosion resistance |
For applications involving extremely high temperatures or corrosive gases, a ceramic heat exchanger can be integrated before the tubular heat exchanger condenser.
The ceramic heat exchanger acts as a protective high-temperature heat transfer section, improving:
This combination provides an optimized heat recovery solution for demanding industrial environments.
Tubular heat exchanger condensers can be used in:
