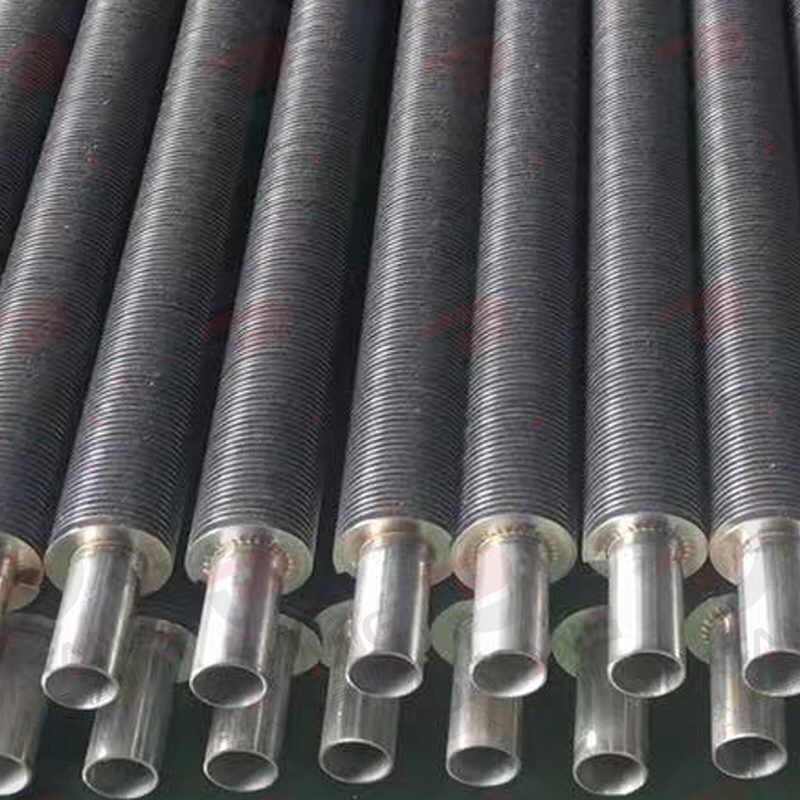

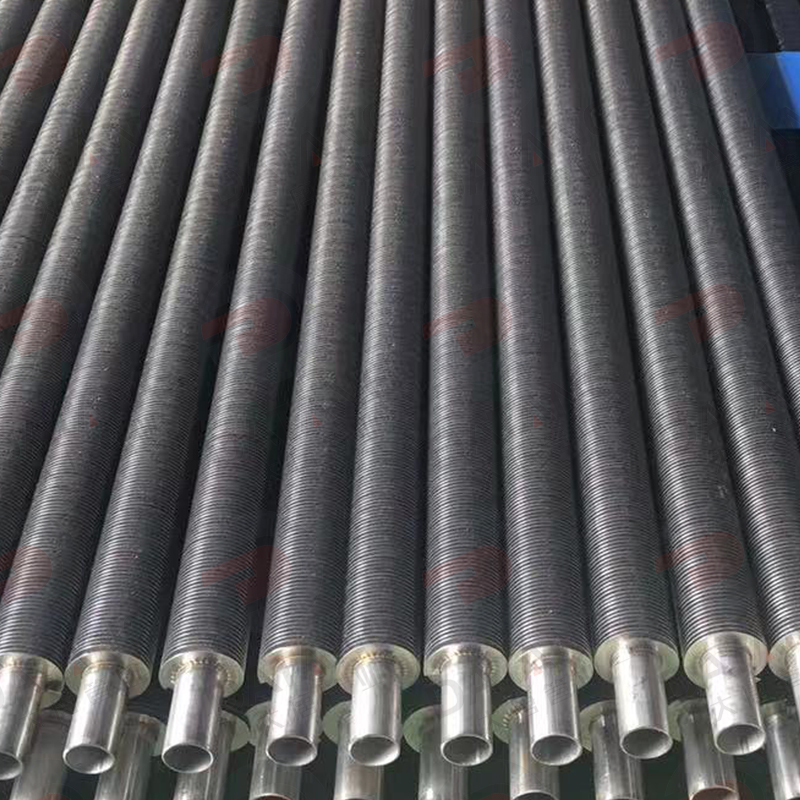

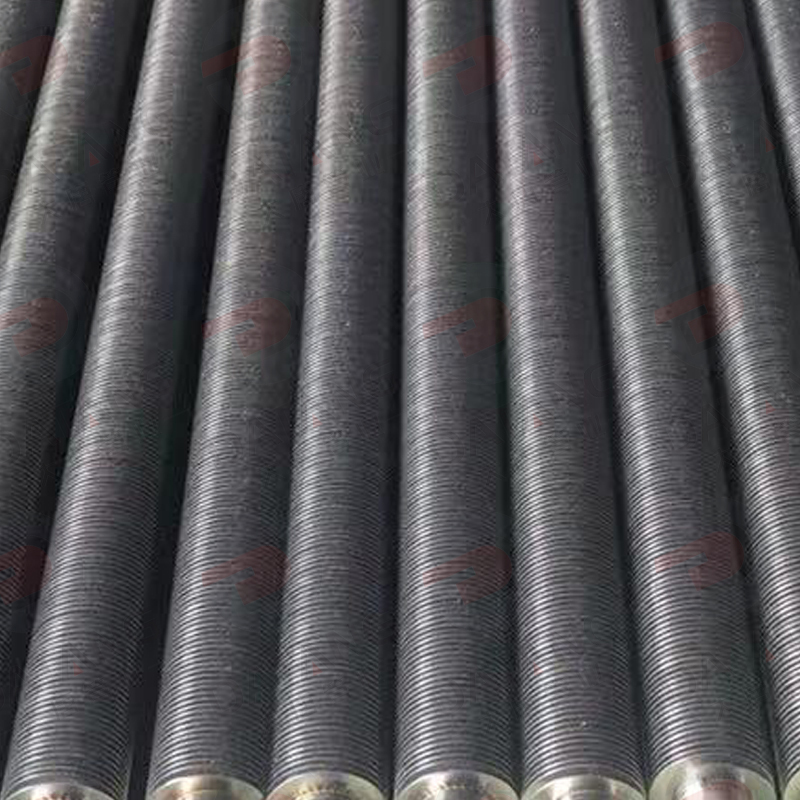

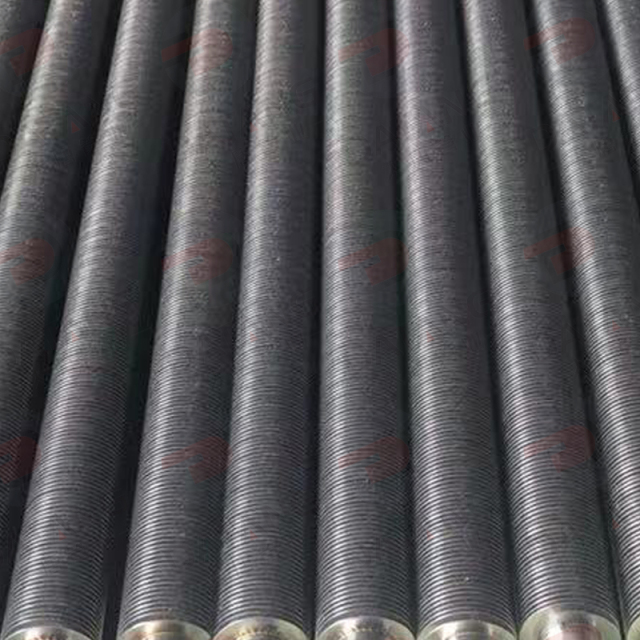

Laser Welded Finned Tube: Advanced Heat Transfer Technology for Compact Heat Exchangers

Laser welded finned tubes are an advanced generation of high-performance heat transfer components widely used in:

• Residential wall-mounted boilers
• Condensing boilers
• Industrial boilers
• Heat exchangers
• Energy-saving heat recovery systems

Using advanced laser welding technology, the fin strip is precisely welded onto the tube surface to form a highly integrated heat transfer structure.

Compared with traditional high frequency welded finned tubes, laser welded finned tubes provide:

• Nearly zero thermal contact resistance
• Higher finning ratio
• Lower weight
• More compact heat exchanger design
• Higher energy efficiency

They are especially suitable for modern heating systems requiring high efficiency, compact structure, and low emission performance.

Development Background of Laser Welded Finned Tubes

Finned tube technology has developed rapidly in recent years. Traditional industrial finned tubes mainly include:

• High frequency welded finned tubes
• Embedded finned tubes
• Brazed finned tubes

Among them, high frequency welded finned tubes have become widely used due to their:

• High production efficiency
• Excellent automation capability
• Reliable manufacturing quality

However, conventional high frequency welding still has limitations:

• The fin root area may not be fully penetrated
• Wrinkles may occur at the fin base
• Contact thermal resistance remains
• Dust accumulation can affect long-term performance

To meet increasing requirements for:

• Energy conservation
• Carbon emission reduction
• Higher heating efficiency

laser welded finned tubes have emerged as a next-generation heat transfer solution.

Key Advantages of Laser Welded Finned Tubes

1. Near Zero Thermal Contact Resistance

Laser welding creates a direct metallurgical bond between the fin and tube.

Advantages:

• No air gap between fin and tube
• Minimal heat transfer loss
• Maximum heat conduction efficiency

Compared with conventional mechanical fin connections, laser welded finned tubes achieve significantly improved thermal performance.

2. Higher Finning Ratio and Lightweight Structure

Laser welding technology allows:

• Thinner tube walls
• Thinner fin strips
• Higher fin density

Typical dimensions:

Tube wall thickness:
0.8–1.5 mm

Fin thickness:
0.3–1.0 mm

Benefits:

• Reduced material consumption
• Lower equipment weight
• Reduced manufacturing cost
• Higher heat transfer capacity per unit volume

3. High Welding Penetration Rate

Laser welding provides deep and uniform welding penetration.

Advantages:

• Prevents crevice corrosion
• Improves mechanical strength
• Reduces thermal resistance
• Extends service life

The strong welded structure ensures reliable operation under:

• High temperature conditions
• Thermal cycling
• Corrosive environments

4. Flexible Material Compatibility

Laser welding technology overcomes many material limitations of traditional processes.

It allows combinations of different materials, including:

Tube Materials

• Carbon steel
• Stainless steel
• Copper alloys
• Aluminum alloys
• Nickel-based alloys

Fin Materials

• Carbon steel
• Stainless steel
• Aluminum
• Copper

This flexibility enables customized solutions for different heat exchanger applications.

5. Excellent Secondary Processing Capability

Laser welded finned tubes maintain high structural integrity after welding.

They can be further processed into:

• Spiral coils
• U-shaped tubes
• Bent tubes
• Compact heat exchanger assemblies

This makes them ideal for:

• Wall-mounted boilers
• Condensing heat exchangers
• Compact heating systems

6. Small Heat Affected Zone

Laser welding produces:

• Concentrated heat input
• Small welding heat affected zone
• Minimal metallurgical changes

Advantages:

• Maintains original material properties
• Enables small diameter finned tube production
• Improves dimensional accuracy

This is particularly important for compact residential and commercial heating equipment.

Material Requirements for Heat Transfer and Condensing Tubes

Heat exchanger tubes used in boilers and condensing systems must provide not only excellent thermal conductivity but also:

• Corrosion resistance
• Erosion resistance
• High mechanical strength
• Good rigidity
• Excellent formability
• Easy manufacturing capability

Laser welded finned tubes meet these requirements through precise welding technology and optimized material selection.

Effect of Rolling Reduction on Laser Welded Finned Tube Performance

During the fin forming process, rolling reduction directly affects:

• External fin height
• Internal rib height
• Heat transfer performance

As rolling reduction increases:

1. The cutting depth of the forming tool into the tube increases.
2. Metal deformation becomes stronger.
3. The displaced metal flows into the gaps between forming rollers.
4. External fin height increases.

At the same time:

• The internal tube layer experiences greater compression force.
• Metal flows into the internal spiral grooves.
• Groove filling improves.
• Internal rib height increases.

Therefore, optimized rolling reduction helps improve:

• Fin geometry
• Heat transfer surface area
• Turbulence generation
• Overall heat exchanger efficiency

Applications of Laser Welded Finned Tubes

1. Wall-Mounted Gas Boilers

Laser welded finned tubes are widely used in:

• Domestic heating boilers
• Condensing boilers
• High-efficiency water heaters

Advantages:

• Compact structure
• Fast heat transfer
• Reduced energy consumption
• Lower emissions

2. Industrial Boilers

Applications:

• Boiler heat exchangers
• Economizers
• Waste heat recovery systems

Benefits:

• High thermal efficiency
• Long service life
• Reliable operation

3. Condensing Heat Exchangers

Ideal for:

• Gas condensation systems
• Low-temperature heat recovery
• Energy-saving heating equipment

The high fin density allows:

• Smaller exchanger size
• Higher heat recovery efficiency
• More compact equipment design

4. HVAC and Commercial Heating Systems

Used in:

• Air heaters
• Heating coils
• Compact heat exchangers

Advantages:

• Lightweight structure
• High heat transfer capacity
• Space-saving design

Laser Welded Finned Tube vs High Frequency Welded Finned Tube

Why Choose Laser Welded Finned Tubes?

Laser welded finned tubes represent the future direction of high-efficiency heat exchanger technology.

Their advantages include:

✔ Zero thermal contact resistance
✔ High welding penetration
✔ Lightweight construction
✔ Large heat transfer area
✔ Compact exchanger design
✔ Flexible material selection
✔ Excellent corrosion resistance
✔ Energy-saving performance

They are an ideal solution for modern boilers, condensing heating systems, industrial heat exchangers, and energy-efficient thermal equipment.
