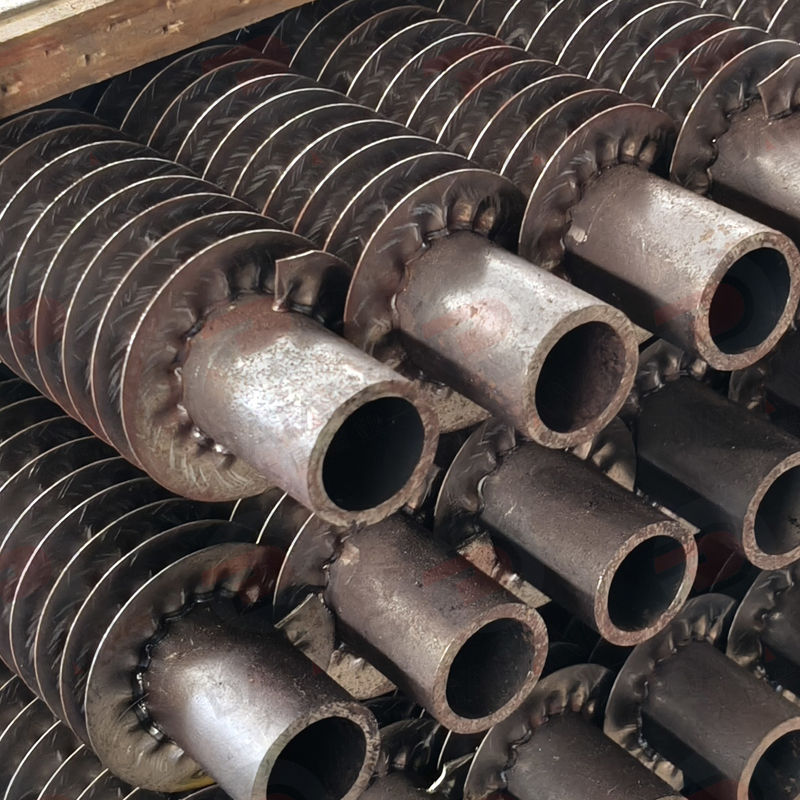

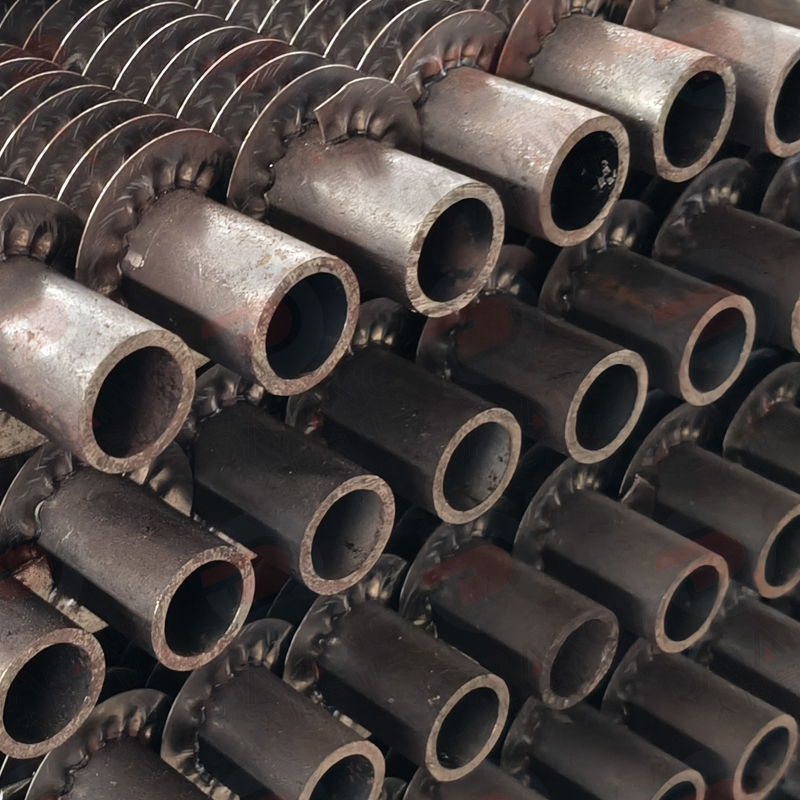

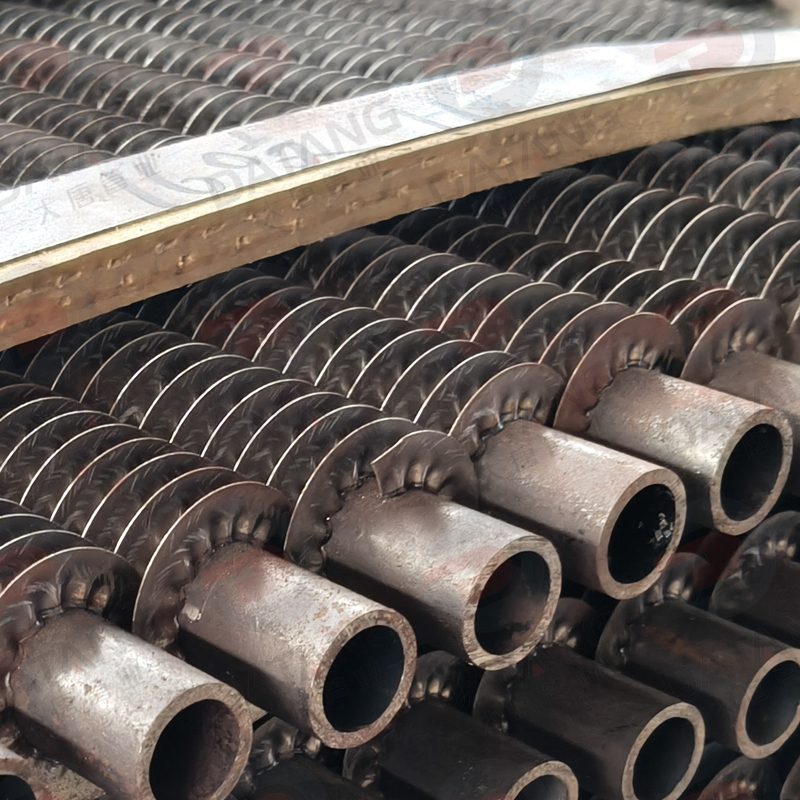

High Frequency Welded Spiral Finned Tube: Advanced Heat Transfer Solution for Industrial Applications

High frequency welded spiral finned tubes, also known as HFW spiral finned tubes or welded helical finned tubes, are one of the most widely used industrial heat transfer components.

They are manufactured by continuously winding a metal strip around the outer surface of a seamless steel tube and using high frequency resistance welding technology to permanently bond the fin strip and tube into an integrated structure.

The spiral fins significantly increase the external heat transfer area, improving heat exchange efficiency in gas-to-liquid and gas-to-gas heat transfer systems.

Compared with conventional wrapped finned tubes or mechanically assembled fin tubes, high frequency welded spiral finned tubes provide:

• Higher bonding strength
• Lower thermal resistance
• Better resistance to thermal cycling
• Longer service life under harsh industrial conditions

Structure of High Frequency Welded Spiral Finned Tube

A high frequency welded spiral finned tube consists of three main components:

1. Base Tube (Heat Transfer Tube)

The base tube is the pressure-bearing component responsible for transporting heat transfer media.

Common materials include:

• Carbon steel seamless tube
• Stainless steel tube
• Alloy steel tube

Typical working media:

• Water
• Steam
• Thermal oil
• High-temperature gas

The base tube provides:

• High mechanical strength
• Pressure resistance
• High-temperature durability
• Reliable operation under industrial conditions

It is widely used in medium and high pressure heat exchanger systems.

2. Spiral Fin Strip

The fin strip is continuously wound around the outside surface of the tube in a spiral shape.

Common fin materials:

• Carbon steel strip
• Stainless steel strip

Available designs:

Plain Spiral Fins

General-purpose design suitable for:

• Industrial heating systems
• Standard heat exchangers
• Air heaters

Serrated Spiral Fins

Serrated or segmented fins create stronger airflow turbulence.

Advantages:

• Improved boundary layer disruption
• Enhanced heat transfer performance
• Reduced dust accumulation

Compared with plain fins, serrated fins can increase heat transfer efficiency by approximately 8%–12% under suitable operating conditions.

3. Metallurgical Welded Bond

Unlike simple wrapped or embedded fin tubes, high frequency welded spiral finned tubes use a permanent metallurgical bond.

The fin and tube are:

• Fully integrated
• Free of air gaps
• Strongly connected
• Resistant to fin loosening

This structure minimizes contact thermal resistance and ensures stable heat transfer performance.

High Frequency Welding Principle

High frequency welded spiral finned tubes are manufactured using high frequency resistance welding (HFRW) technology.

The process relies on two electromagnetic effects:

1. Skin Effect

High frequency current concentrates mainly on the contact surfaces between:

• The steel tube
• The fin strip

This rapidly heats the bonding area to a plastic or micro-melting state.

2. Proximity Effect

The current concentrates around the contact seam instead of penetrating deeply into the tube wall.

Benefits:

• Small heat affected zone
• Minimal impact on base material properties
• Efficient energy utilization

3. Pressure Welding Forming

During production:

• The fin strip is continuously wound around the tube
• Welding rollers apply synchronized pressure
• The contact surface forms a solid metallurgical bond

The entire process requires:

• No filler wire
• No welding flux
• Continuous automatic production

This enables high productivity and consistent quality.

Key Advantages of High Frequency Welded Spiral Finned Tubes

1. Extremely Low Thermal Contact Resistance

Because the fin and tube are welded together as one structure:

• No air gap exists between fin and tube
• Heat transfer loss is minimized
• Thermal resistance is extremely low

Typical thermal resistance:

<0.0005 m²·K/W

Compared with:

• Loose sleeve fins
• Wrapped fins
• Expansion-bonded fins

High frequency welded tubes maintain better long-term heat transfer performance.

2. High Bonding Strength

The welding ratio can reach:

≥95%

Advantages:

• Weld strength close to base material strength
• No fin loosening
• No fin falling off
• Excellent resistance to thermal shock

Suitable for:

• High-temperature operation
• Frequent heating and cooling cycles
• Mechanical vibration environments

3. Large Heat Transfer Surface Area

Spiral fins greatly increase the external surface area.

Compared with plain tubes:

• Heat transfer area can increase by 3–8 times
• Equipment size can be reduced
• Material consumption can be lowered

This makes them ideal for compact and high-efficiency heat exchanger designs.

4. High Temperature and Pressure Resistance

High frequency welded spiral finned tubes can be designed for demanding industrial environments:

• Flue gas temperatures above 300℃
• Medium pressure systems up to approximately 2.5 MPa

Common applications:

• Boiler economizers
• Waste heat recovery units
• Air preheaters
• Industrial heaters

5. Low Dust Accumulation and Easy Cleaning

The continuous welded structure provides:

• Smooth fin-to-tube connection
• No hidden gaps
• Reduced dust collection areas

Serrated fins further improve performance by:

• Increasing turbulence
• Reducing particle adhesion
• Improving heat exchange efficiency

They are especially suitable for dusty exhaust gas applications.

6. High Production Efficiency and Customization

The continuous welding process enables:

• Automated mass production
• Stable product quality
• Flexible customization

Customizable parameters include:

• Fin pitch
• Fin height
• Tube diameter
• Tube material
• Fin material

Main Types of High Frequency Welded Spiral Finned Tubes

1. Plain High Frequency Welded Spiral Finned Tube

General-purpose type.

Applications:

• Industrial heating
• Air heaters
• Standard heat exchangers
• HVAC systems

2. Serrated High Frequency Welded Spiral Finned Tube

Designed for enhanced heat transfer.

Applications:

• Boiler flue gas recovery
• Economizers
• Air preheaters
• Waste heat recovery systems

Features:

• Stronger turbulence
• Higher heat transfer coefficient
• Better performance in gas-side heat exchange

3. Material Classification

Carbon Steel High Frequency Welded Finned Tube

Suitable for:

• Boilers
• Steam systems
• General industrial applications

Stainless Steel High Frequency Welded Finned Tube

Suitable for:

• Corrosive environments
• Chemical processing
• Food and pharmaceutical industries

Applications of High Frequency Welded Spiral Finned Tubes

1. Power Generation Boilers

Used in:

• Boiler economizers
• Air preheaters
• Heat recovery steam generators (HRSG)

Functions:

• Recovering flue gas heat
• Improving boiler efficiency
• Reducing fuel consumption

2. Metallurgy and Cement Industry

Applications:

• Kiln exhaust heat recovery
• Sintering machine heat recovery
• Blast furnace gas cooling

Advantages:

• High temperature resistance
• Dust-resistant structure
• Long operating life

3. Petrochemical Industry

Used in:

• Process heat exchangers
• Flue gas coolers
• Reboilers
• Thermal recovery systems

4. Industrial Heating and HVAC Systems

Applications:

• Factory heating
• Greenhouse heating
• Drying equipment
• Steam air heaters

Used as the core heat transfer element in industrial radiators and air heating units.

5. Waste Incineration and Biomass Boilers

Suitable for:

• High-temperature exhaust gas cooling
• Waste heat utilization
• Biomass combustion systems

Why Choose High Frequency Welded Spiral Finned Tubes?

High frequency welded spiral finned tubes provide an efficient and durable heat transfer solution by combining:

• Strong metallurgical bonding
• Large heat transfer area
• High temperature resistance
• Excellent mechanical strength
• Long service life

They are widely recognized as a preferred solution for boilers, industrial heat exchangers, waste heat recovery systems, and high-temperature gas applications.

Conclusion

High frequency welded spiral finned tubes represent advanced industrial heat transfer technology. Through continuous spiral welding, the fin and tube form a strong integrated structure with excellent thermal performance and mechanical reliability.

With advantages including low thermal resistance, high bonding strength, large heat transfer area, easy maintenance, and strong adaptability, these tubes are widely used in energy, metallurgy, chemical processing, HVAC, and waste heat recovery industries.
