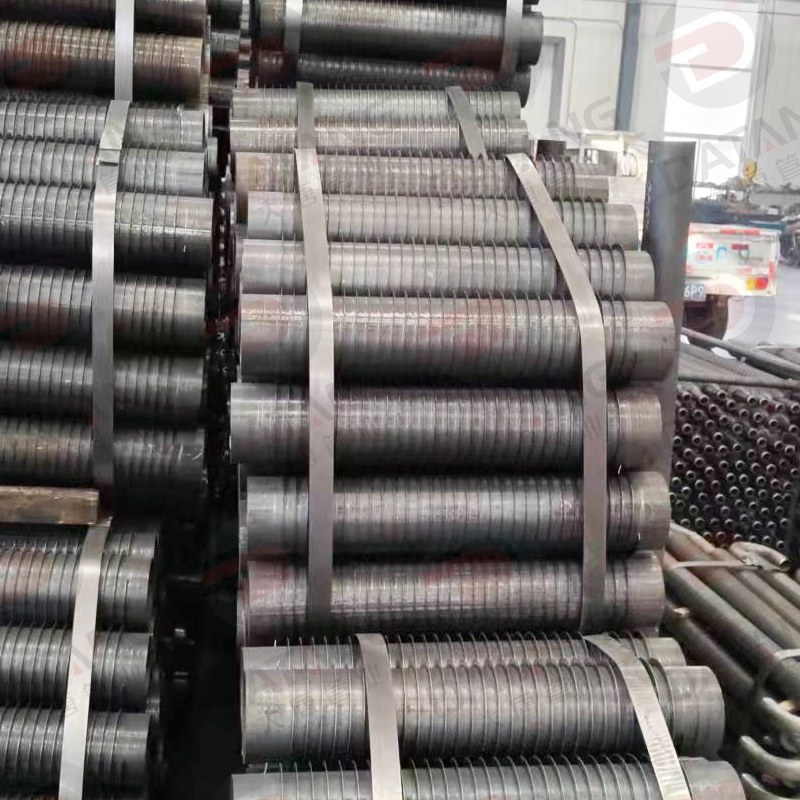

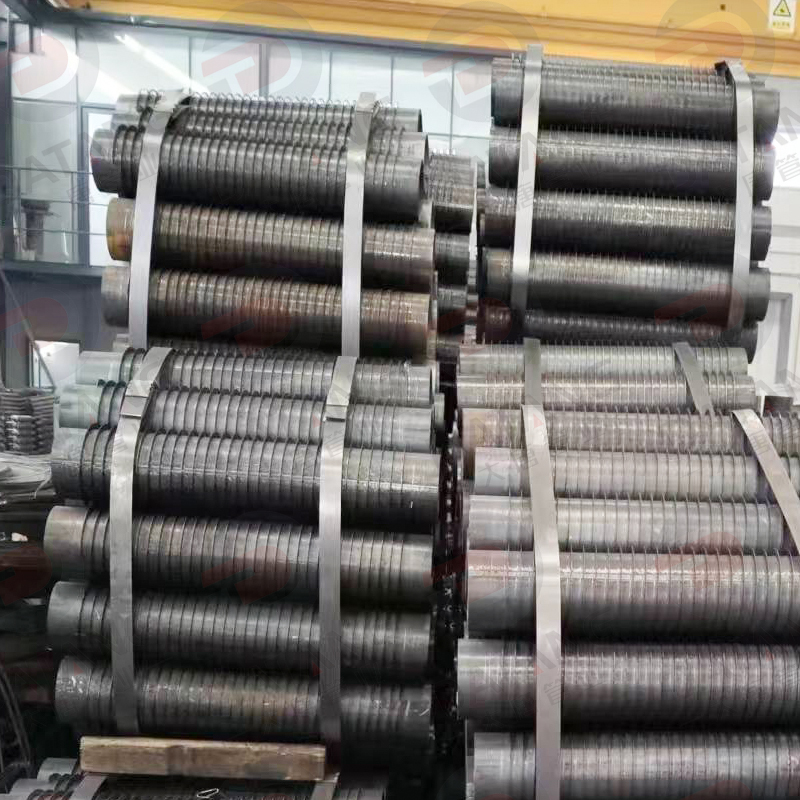

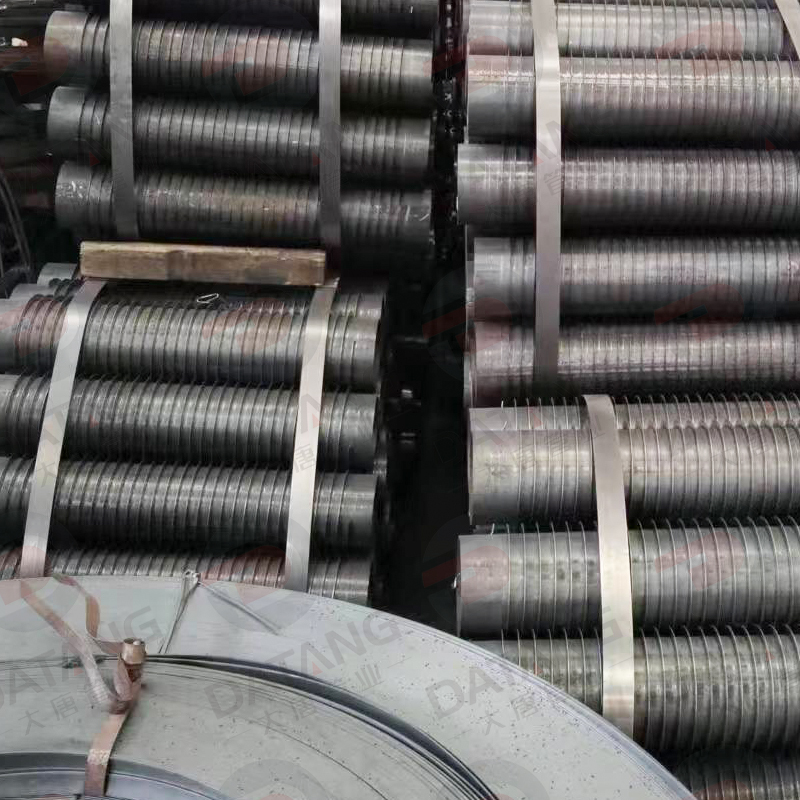

High Frequency Welded Spiral Fin Tube for Industrial Steam Heat Exchanger Systems

1. Definition and Manufacturing Process of High Frequency Welded Spiral Fin Tubes

High Frequency Welded Spiral Fin Tube (HFW Spiral Fin Tube) is a high-efficiency heat transfer component widely used in industrial steam heating systems, steam air heaters, waste heat recovery units, boilers, and industrial heat exchangers.

It is specially designed for applications where high-temperature and high-pressure steam flows inside the tube while air, flue gas, or process gas flows outside the tube.

Compared with conventional wrapped fin tubes, high frequency welded spiral fin tubes provide a metallurgical bond between the fin strip and the base tube, resulting in excellent heat transfer performance, mechanical strength, and long service life.

High Frequency Welding Process (No Filler Wire, No Flux)

The manufacturing process includes:

• A steel strip is continuously spirally wound onto the outer surface of a seamless steel tube.
• High-frequency electrical current generates heat through the skin effect and proximity effect.
• The contact area between the fin strip and tube surface reaches welding temperature instantly.
• Mechanical pressure creates a strong metallurgical bond between the fin and tube.
• The welded fin structure is continuously formed without gaps, loose contact, or air insulation layers.

The welding efficiency can reach over 95%, significantly reducing thermal contact resistance and improving heat transfer efficiency.

2. Spiral Fin Tube Types for Steam Heat Transfer Applications

Different fin designs are selected according to steam pressure, temperature, dust conditions, and heat transfer requirements.

Solid Plain Fin Tube (WO Type)

Features:

• Smooth continuous fin surface
• Low air-side pressure drop
• Excellent anti-dust performance
• Easy cleaning and maintenance

Recommended applications:

• Steam air heaters
• Industrial drying systems
• Factory and workshop heating

Serrated Fin Tube (WOS Type)

Features:

• Serrated fin structure increases turbulence
• Improves air-side heat transfer coefficient
• Suitable for high-temperature waste heat recovery applications

Typical performance improvement:

• Heat transfer coefficient can increase by approximately 10%–20% compared with solid fins

Recommended applications:

• Boiler air preheaters
• Waste heat recovery systems
• High-temperature steam heat exchangers

3. Material Selection for Industrial Steam Applications

Low and Medium Pressure Saturated Steam

Operating condition:

• Steam pressure: 0.1–1.6 MPa
• Temperature: ≤200°C

Recommended materials:

Typical applications:

• Steam drying equipment
• Workshop heating systems
• Industrial air heaters

Medium and High Pressure Superheated Steam

Operating condition:

• Steam pressure: 1.6–2.5 MPa
• Temperature: 200–350°C

Recommended materials:

Applications:

• Boiler heat recovery
• Chemical processing equipment
• High-temperature air heating systems

Corrosive Steam and Harsh Environments

Recommended materials:

Applications:

• Chemical industry
• Acid and alkaline environments
• Moist flue gas heat recovery

4. Technical Specifications of Industrial Steam Spiral Fin Tubes

5. Advantages of High Frequency Welded Spiral Fin Tubes in Steam Systems

1. Higher Heat Transfer Efficiency

The spiral fin structure greatly increases the external heat transfer area.

Compared with bare tubes:

• Heat transfer surface area can increase by approximately 3–8 times
• Improved thermal bonding reduces heat transfer resistance
• Smaller heat exchanger size can achieve the same heating capacity

This helps reduce:

• Steam consumption
• Equipment footprint
• Operating costs

2. Excellent Resistance to Thermal Cycling

The high-frequency welded joint provides:

• Strong mechanical connection
• High vibration resistance
• Better resistance against repeated heating and cooling cycles

Suitable for:

• Frequent steam start-stop operation
• Industrial drying lines
• Boiler auxiliary systems

3. Suitable for High Temperature and High Pressure Steam

Advantages include:

• Continuous welded structure
• No loose fin contact
• No solder joint failure at high temperature
• Stable pressure resistance

Widely used in:

• Steam boilers
• Chemical heat exchangers
• Industrial heating equipment

4. Better Anti-Fouling Performance

The welded fin root has:

• No gaps
• No dead zones
• Reduced dust accumulation

Large pitch fin designs are suitable for:

• Dusty drying environments
• Flue gas heat recovery systems
• Equipment requiring long maintenance intervals

5. Compact Equipment Design

Compared with traditional bare tube heat exchangers:

• Larger heat transfer area
• Smaller equipment size
• Reduced installation space
• Lower structural and construction costs

6. Industrial Applications of Steam Spiral Fin Tubes

Industrial Steam Drying Systems

Used in:

• Food processing dryers
• Wood drying equipment
• Textile drying machines
• Building material drying lines

Typical condition:

• 0.3–0.8 MPa saturated steam inside tubes

Factory and Workshop Steam Heating

Applications:

• Large industrial buildings
• Warehouses
• Greenhouses
• Production workshops

Boiler Heat Recovery Equipment

Applications:

• Boiler economizers
• Air preheaters
• Flue gas heat recovery systems

Functions:

• Recover waste heat
• Improve boiler efficiency
• Preheat combustion air or feed water

Chemical Process Heat Exchangers

Used for:

• Steam-to-air heating
• Reactor heating systems
• Process gas heating

Waste Heat Recovery Systems

Applications:

• Waste steam recovery
• Condensate heat recovery
• Industrial exhaust heat recovery

7. Comparison with Traditional Fin Tube Technologies

8. Selection Guide for Industrial Steam Systems

9. Quality Control and Testing

For industrial steam applications, high frequency welded spiral fin tubes should normally undergo:

• Dimensional inspection
• Weld quality inspection
• Material verification
• Pressure testing
• Surface protection inspection

For steam pressure systems, hydraulic pressure testing is recommended before delivery.
