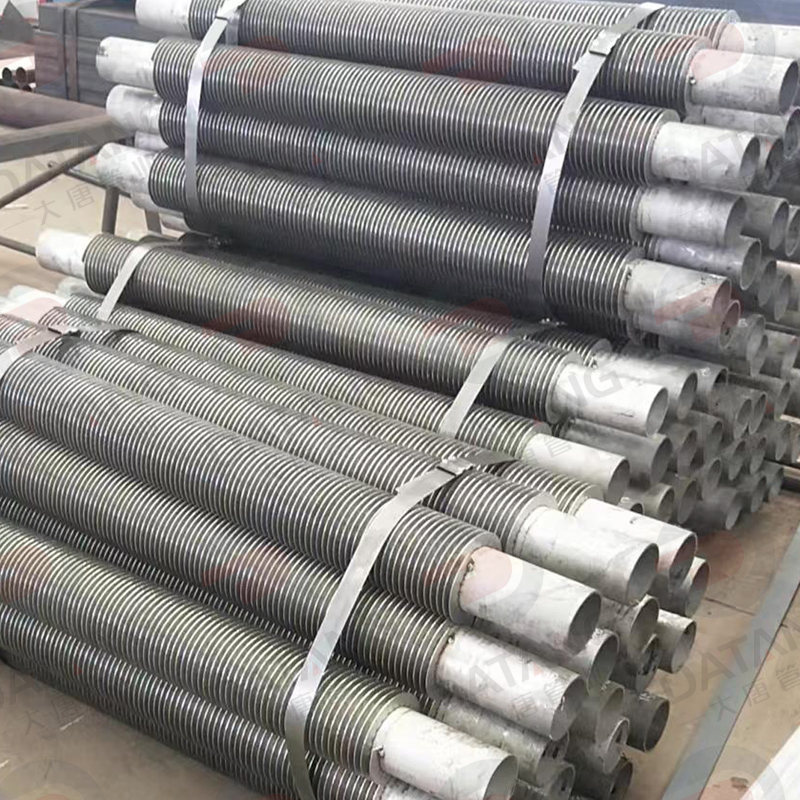

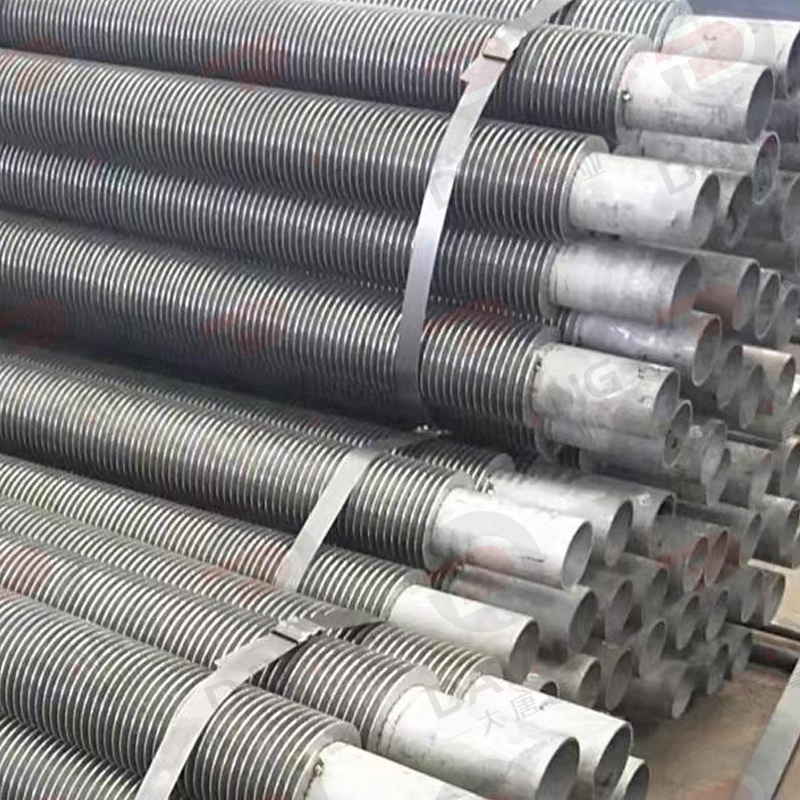

High Frequency Welded Spiral Fin Tube for Industrial Steam Heat Exchanger

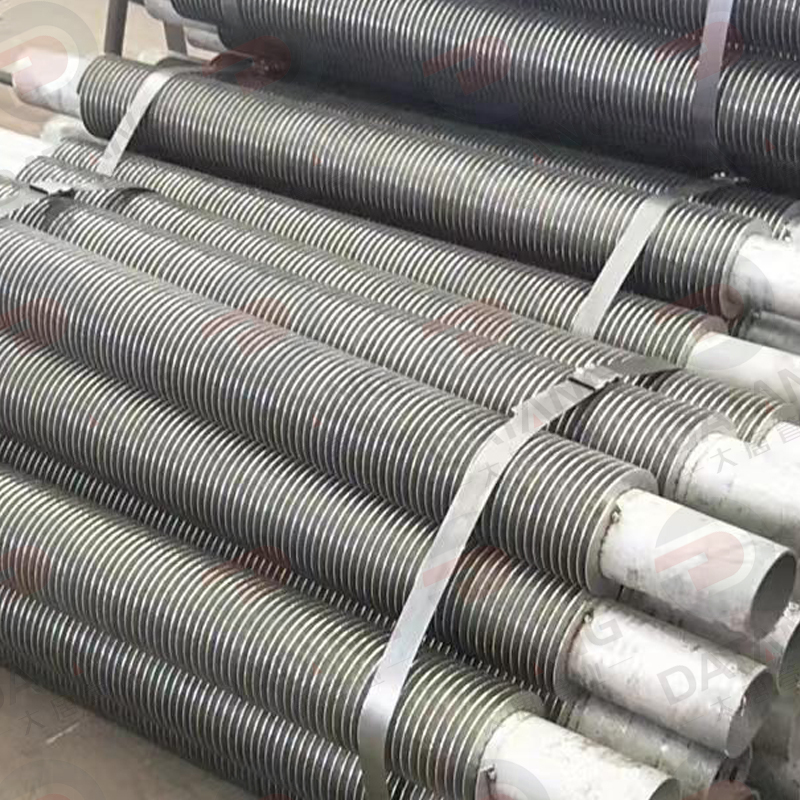

Industrial Steam High Frequency Welded Spiral Fin Tube (HFW Spiral Fin Tube)

High Frequency Welded Spiral Fin Tube, also known as HFW Spiral Fin Tube, is a high-efficiency heat transfer component widely used in industrial steam heating systems, steam air heaters, waste heat recovery units, boilers, and process heat exchangers.

Designed for applications where high-temperature and high-pressure steam flows inside the tube while air, flue gas, or process gas flows outside, this spiral fin tube significantly improves heat transfer efficiency compared with conventional bare tubes, sleeve fin tubes, and mechanically wound fin tubes.

1. Definition and Manufacturing Process of HFW Spiral Fin Tube

Advanced High Frequency Welding Technology (No Filler Wire, No Flux)

The manufacturing process of high frequency welded spiral fin tubes includes:

A continuous steel strip is helically wound around the outer surface of a seamless base tube.
High-frequency electric current generates heat through the skin effect and proximity effect.
The contact area between the fin strip and tube surface is instantly heated to a molten state.
Mechanical pressure creates a strong metallurgical bond between fin and tube.
The welding ratio reaches over 95%, ensuring excellent heat conduction.

Unlike traditional cold-wrapped or tension-wrapped fin tubes, HFW spiral fin tubes have:

No air gap between fin and tube
No loose contact resistance
No segmented welding defects
Stable performance under thermal cycling conditions

This structure provides extremely low thermal resistance and long service life in industrial steam applications.

2. Spiral Fin Types for Steam Heat Transfer Applications

Two common fin designs are available for steam heating systems:

Fin Type	Description	Recommended Applications
Solid Flat Fin (WO)	Smooth continuous fin surface, low air resistance, less dust accumulation	Steam drying equipment, factory heating, clean air heating systems
Serrated Fin (WOS)	Cut fin design improves turbulence and increases heat transfer coefficient by approximately 10%-20%	High-temperature steam recovery, boiler air preheaters, waste heat recovery

3. Material Selection for Industrial Steam Applications

Different steam conditions require different tube materials.

Steam Condition	Operating Temperature & Pressure	Base Tube Material	Fin Material	Typical Applications
Low and Medium Pressure Saturated Steam	0.1-1.6 MPa, ≤200℃	Carbon steel seamless tube 20#	08F carbon steel strip + hot dip galvanizing	Drying rooms, factory heating
Medium and High Pressure Superheated Steam	1.6-2.5 MPa, 200-350℃	20G boiler tube / 16Mn alloy steel tube	Carbon steel strip or stainless steel 304	Boilers, chemical industry, waste heat recovery
Corrosive Steam Environment	Acid/alkali steam, humid flue gas	Stainless steel 304/316L, ND steel	Same grade stainless steel strip	Chemical process heating, corrosion-resistant heat exchangers

4. Technical Specifications of Industrial Steam Spiral Fin Tubes

Parameter	Standard Range
Base Tube Outside Diameter	32 / 42 / 48 / 57 / 76 mm
Tube Wall Thickness	3-6 mm
Fin Height	12-25 mm
Fin Thickness	0.9-1.5 mm
Fin Pitch	4-10 mm
Single Tube Length	0.5-6 m
Operating Temperature Range	-40℃ to 400℃
Standard Pressure Rating	Up to 2.5 MPa
Customized Pressure Rating	Up to 16 MPa

5. Advantages of HFW Spiral Fin Tubes in Steam Heat Exchangers

1. Higher Heat Transfer Efficiency

The spiral fin structure expands the external heat transfer area by 3-8 times compared with bare tubes.

Due to the metallurgical welding connection between fin and tube:

Thermal resistance is extremely low
Heat transfer performance is significantly improved
Steam consumption can be reduced under the same heating capacity

Compared with conventional smooth tubes, HFW spiral fin tubes can provide 4-6 times higher heat dissipation capacity.

2. Excellent Resistance to Thermal Shock and Fin Loosening

Industrial steam systems often experience:

Frequent start and stop cycles
Rapid temperature changes
Continuous vibration from fans and equipment

The high-frequency welded structure provides:

Strong fin-to-tube bonding
High mechanical strength
No fin detachment during long-term operation

Compared with mechanically wrapped fin tubes, HFW spiral fin tubes offer a much longer service life, typically 10-15 years depending on operating conditions.

3. Suitable for High Temperature and High Pressure Steam

The continuous welded structure ensures:

Reliable pressure resistance
Stable operation under saturated steam and superheated steam conditions
Reduced risk of leakage caused by thermal expansion

It is widely used in:

Boiler systems
Chemical process heaters
Steam air heaters
Industrial heat recovery equipment

4. Less Fouling and Easier Maintenance

The seamless connection between fin and tube eliminates dead zones where dust and moisture can accumulate.

Benefits include:

Reduced ash buildup
Lower cleaning frequency
Stable heat transfer performance
Better suitability for dusty industrial environments

For high-dust applications, larger fin pitches are recommended.

5. Compact Equipment Design and Lower Installation Cost

Because of the enlarged heat transfer surface:

The heat exchanger size can be significantly reduced
Equipment footprint becomes smaller
Supporting structures and construction costs are reduced

For the same heat output, spiral fin tube heat exchangers require much less installation space than traditional bare tube systems.

6. Typical Applications of Industrial Steam Spiral Fin Tubes

Industrial Steam Drying Equipment

Used in:

Food drying lines
Wood drying systems
Building material drying
Textile drying equipment

Typical steam condition:

0.3-0.8 MPa saturated steam

Factory and Workshop Steam Heating Systems

Applications include:

Large industrial workshops
Steel structure buildings
Warehouses
Greenhouses

Boiler Heat Recovery Equipment

Used for:

Boiler economizers
Air preheaters
Flue gas heat recovery
Feedwater preheating

Chemical Process Heat Exchangers

Used for:

Steam heating of process air
Reactor heating systems
Corrosion-resistant heat transfer equipment

Waste Heat Recovery Systems

Suitable for:

Exhaust steam recovery
Condensate heat recovery
High-temperature gas heat recovery

7. Comparison with Traditional Fin Tubes

Item	HFW Spiral Fin Tube	Traditional Wrapped Fin Tube
Fin Connection	Metallurgical high-frequency welding	Mechanical winding
Thermal Resistance	Extremely low	Higher
Fin Strength	Very strong	Possible loosening
Thermal Shock Resistance	Excellent	Limited
Service Life	10-15 years	Usually shorter
Initial Cost	Higher	Lower
Long-Term Maintenance Cost	Lower	Higher

8. Limitations and Selection Considerations

Although HFW spiral fin tubes provide excellent performance, proper selection is important:

Higher initial investment compared with cold-wrapped galvanized fin tubes
Very small fin pitch (<3 mm) may cause dust blockage
Large tube bundles require additional support due to heavier steel construction

Recommended selection:

Working Condition	Recommended Configuration
Low-pressure saturated steam + clean air	Carbon steel solid fin + hot dip galvanizing
High-pressure superheated steam	20G or alloy steel base tube
High dust drying applications	Serrated fin + large fin pitch
Steam pressure above 1.0 MPa	Tube wall thickness ≥4 mm + hydraulic pressure testing
Outdoor humid environment	Hot dip galvanizing or high-temperature coating

Conclusion

High Frequency Welded Spiral Fin Tubes for industrial steam applications provide an ideal solution for high-efficiency heat transfer systems requiring durability, pressure resistance, and long service life.

With advanced HFW welding technology, optimized fin designs, and a wide range of material options, these tubes are widely used in steam heaters, boilers, drying systems, chemical processing equipment, and industrial waste heat recovery systems.
