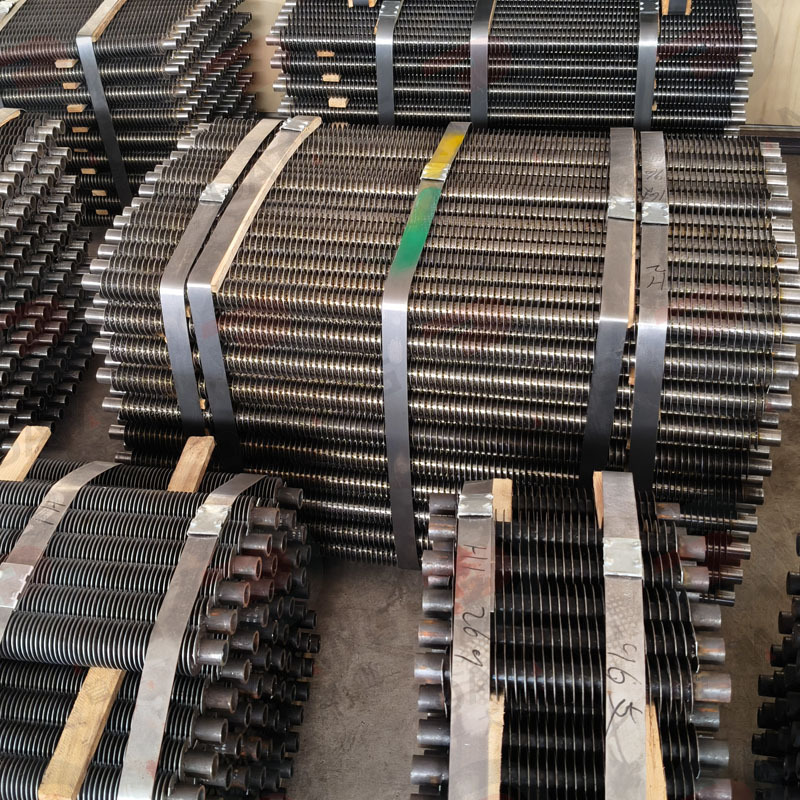

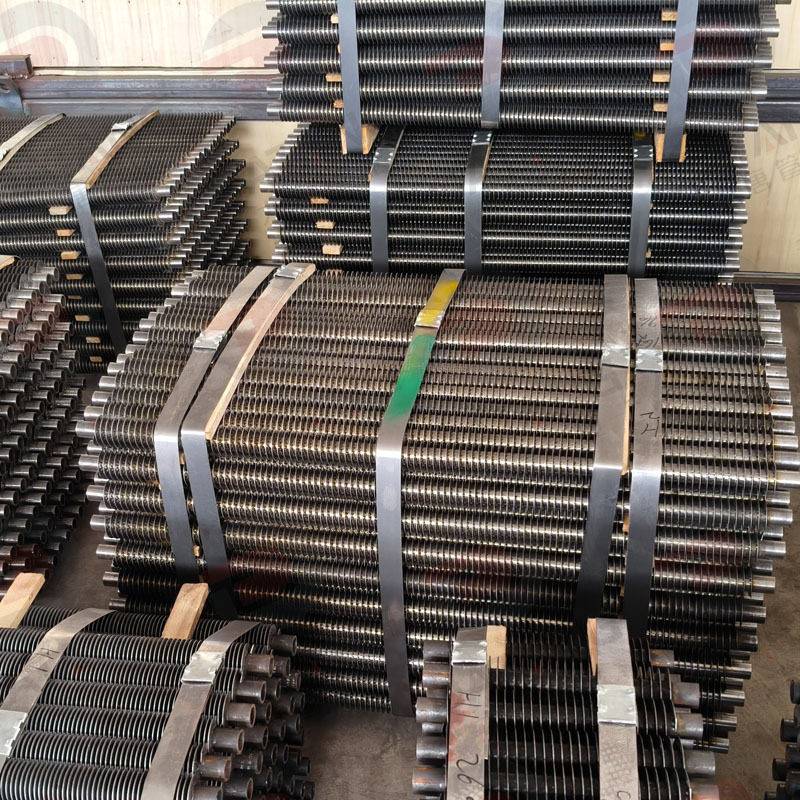

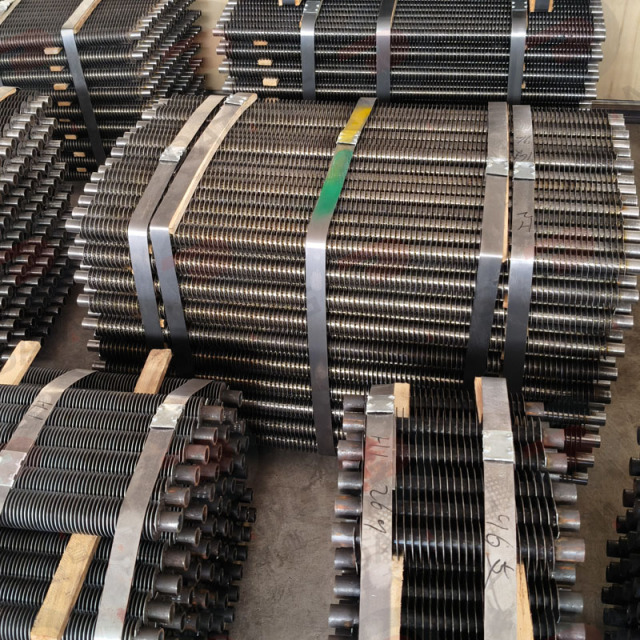

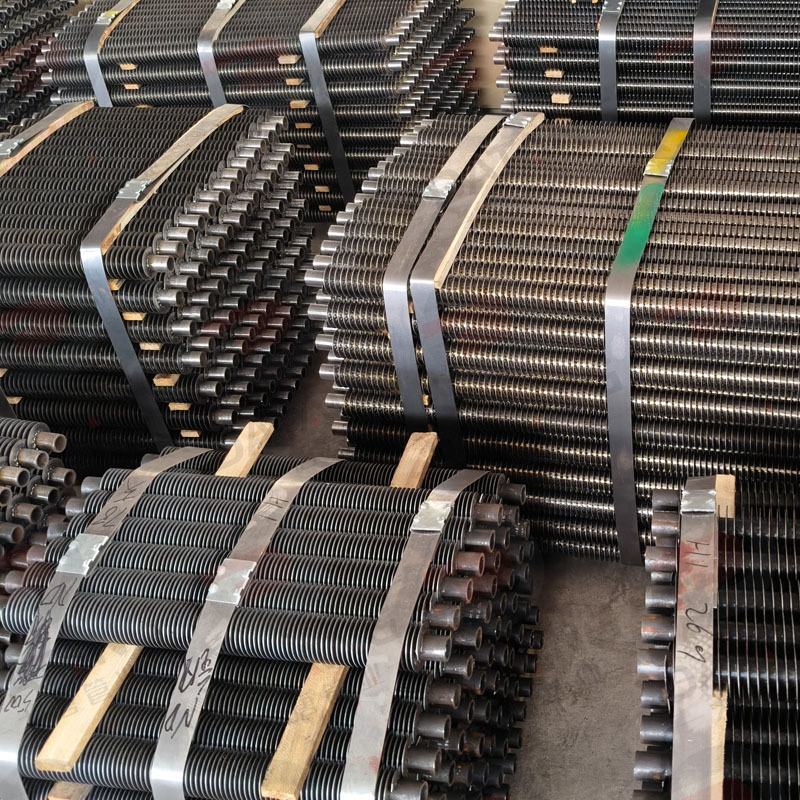

High-frequency welded finned tubes, also known as high-frequency welded fin tubes, are advanced heat transfer components widely used in industrial heat exchangers, boilers, air coolers, and energy systems. These tubes are manufactured by helically wrapping a steel strip around the outer surface of a base tube and continuously welding the strip using high-frequency induction welding technology.
Compared with traditional finned tubes, high-frequency welded finned tubes provide excellent thermal performance, strong mechanical bonding, and long service life, making them a preferred choice for demanding heat transfer applications.
A high-frequency welded finned tube consists of a base tube and a spiral metal fin that is firmly attached through high-frequency welding. During the manufacturing process, the fin strip is continuously heated by high-frequency electrical current, creating a strong metallurgical bond between the fin and the tube surface.
This advanced welding method ensures:
The continuous welding process allows the fin and tube to work as a single heat transfer unit, improving overall equipment performance.
The production of high-frequency welded finned tubes involves several precise manufacturing steps:
The process begins with selecting high-quality base tubes made from materials such as:
The tube surface is cleaned and prepared to ensure a strong welding connection.
A metal strip is continuously wrapped around the outside surface of the tube in a spiral pattern. The fin height, thickness, and pitch can be customized according to different heat transfer requirements.
High-frequency current is applied to generate heat at the contact area between the fin strip and tube. The localized heat creates a strong fusion bond without damaging the base material.
After welding, the finned tubes undergo quality inspections, including:
This ensures reliable performance in industrial environments.
The welded connection between the fin and tube minimizes thermal resistance, allowing efficient heat transfer between fluids and improving the overall efficiency of heat exchangers.
Unlike mechanically bonded fin tubes, high-frequency welded finned tubes have a permanent metallurgical connection. This provides better resistance against:
These finned tubes can operate under extreme temperature conditions, making them suitable for:
The strong welding structure reduces the risk of fin loosening or falling off during operation, ensuring stable performance over many years.
Manufacturers can produce high-frequency welded finned tubes with different:
to meet specific heat exchanger requirements.
High-frequency welded fin tubes are widely used in many industries due to their high efficiency and reliability.
These tubes are commonly installed in heat exchangers where efficient thermal transfer is required.
High-frequency welded finned tubes improve heat recovery efficiency in boiler systems by increasing the heat transfer surface area.
They are used in air-cooled heat exchangers to enhance cooling performance while reducing equipment size.
The strong structure and corrosion resistance make them suitable for oil refining and chemical processing equipment.
These tubes are widely used in power plants for steam generation, waste heat recovery, and energy efficiency improvement.
Compared with traditional finned tubes, high-frequency welded finned tubes offer several advantages:
| Feature | High-Frequency Welded Finned Tubes | Traditional Finned Tubes |
|---|---|---|
| Bond Strength | Excellent metallurgical welding | Mechanical bonding |
| Heat Transfer Efficiency | High | Moderate |
| Temperature Resistance | High | Limited |
| Durability | Long service life | Lower under harsh conditions |
| Application Range | Heavy industrial applications | General heat transfer systems |
The superior bonding technology makes high-frequency welded fin tubes a reliable solution for modern industrial heat transfer equipment.
Different materials can be selected depending on operating conditions.
Suitable for general industrial applications and cost-effective heat exchanger systems.
Provide excellent corrosion resistance and are commonly used in chemical and food processing industries.
Designed for high-temperature and high-pressure environments.
Offer excellent thermal conductivity for specialized applications.
When selecting high-frequency welded fin tubes, consider the following factors:
Choose materials that can withstand the working temperature of the system.
For corrosive applications, stainless steel or alloy materials may be required.
Fin spacing, fin height, and tube size should be optimized according to thermal performance needs.
The tube should meet pressure, vibration, and durability requirements for long-term operation.
High-frequency welded finned tubes provide an ideal combination of efficiency, durability, and reliability. Their advanced welding technology creates a strong connection between fins and tubes, maximizing heat transfer performance while reducing maintenance requirements.
For industries requiring efficient heat exchangers and reliable thermal solutions, high-frequency welded fin tubes remain one of the most effective choices.
A high-frequency welded finned tube is a heat transfer tube made by continuously welding a spiral fin strip onto a base tube using high-frequency induction welding technology.
They offer high heat transfer efficiency, strong bonding strength, excellent temperature resistance, and long service life.
They are widely used in boilers, heat exchangers, air coolers, petrochemical equipment, and power generation systems.
Common materials include carbon steel, stainless steel, alloy steel, and copper alloys.
