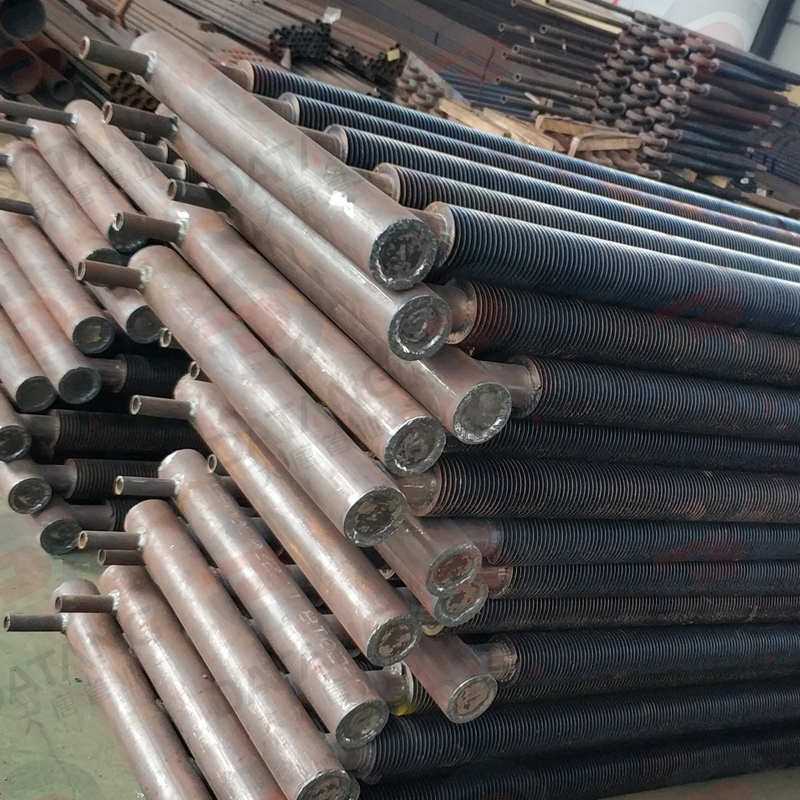

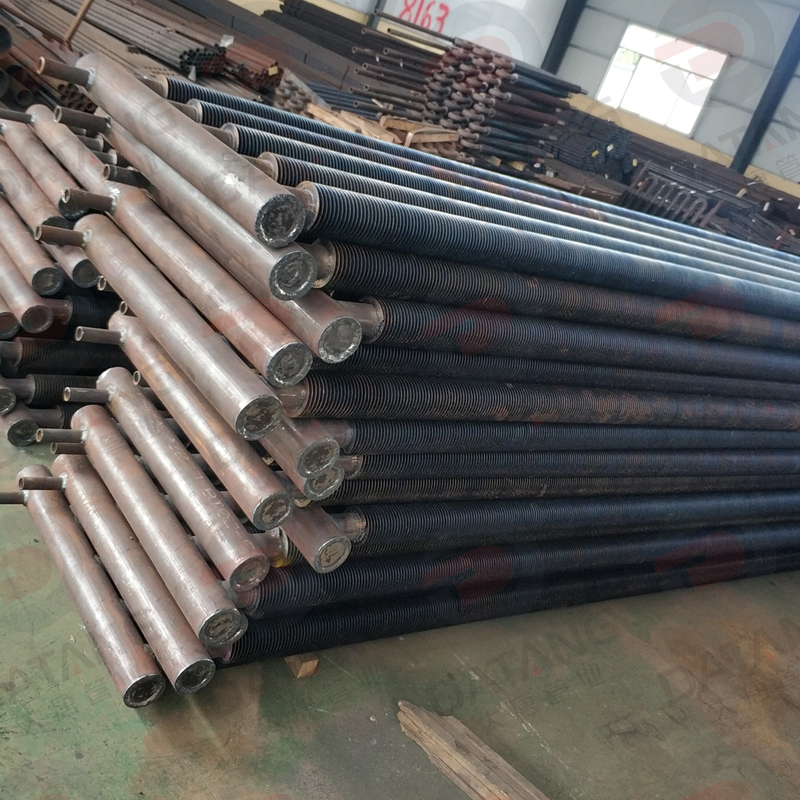

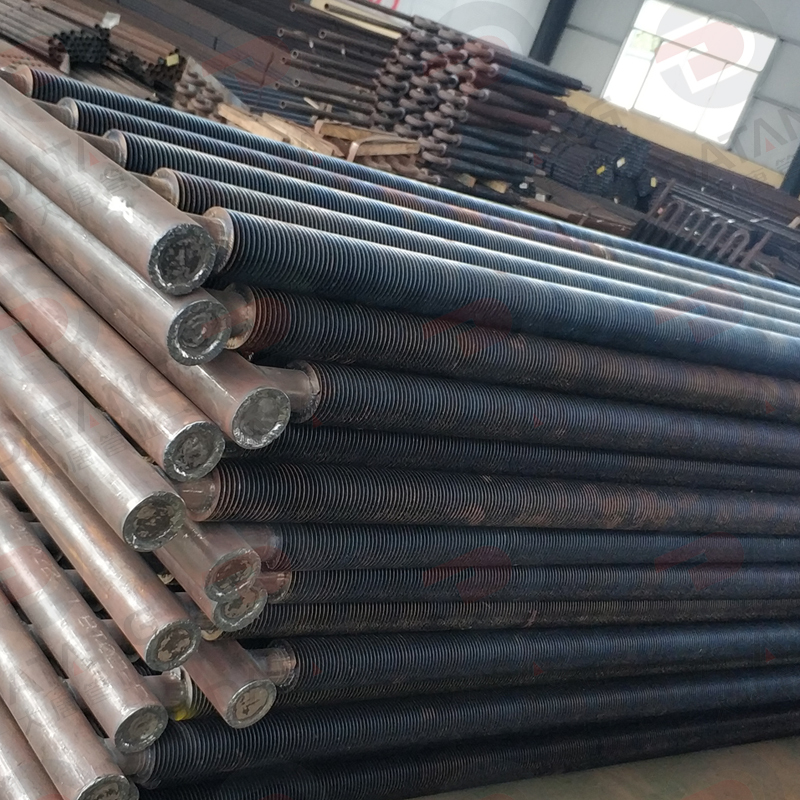

A High Frequency Welded Fin Tube Radiator (also known as a high frequency welded finned tube radiator) is an advanced heating and heat transfer equipment manufactured using high frequency welding technology. It is widely used in industrial heating systems and large-scale commercial buildings due to its high heat transfer efficiency, excellent thermal performance, and strong durability.
Compared with traditional smooth tube radiators, high frequency welded fin tube radiators provide a much larger heat dissipation area, making them an ideal solution for factories, warehouses, greenhouses, workshops, and other large-space heating applications.
The core manufacturing technology of this radiator is high frequency induction welding.
During the welding process, high frequency electric current generates heat through the skin effect and proximity effect, instantly heating the contact area between the steel strip (fin material) and the steel tube (base pipe) until it reaches a plastic state.
Then, mechanical pressure is applied to firmly weld the fin and tube together, creating a strong metallurgical bond.
This advanced welding process provides:
The seamless connection between the fin and base tube ensures efficient heat transfer with minimal thermal resistance.
A high frequency welded fin tube radiator mainly consists of two parts:
The base tube is usually made of seamless steel pipe, which serves as the main heat transfer channel.
It can transport various heating mediums, including:
The strong steel tube structure allows the radiator to operate under high pressure and high temperature conditions.
The fins are spiral-wound steel strips welded tightly around the outer surface of the base tube.
Typical fin specifications include:
The fin structure greatly increases the heat exchange surface area. Compared with ordinary smooth tubes, the heat dissipation area can be increased by 3–5 times, significantly improving heating efficiency.
The high frequency welded fin tube radiator works through a combination of:
The working process is as follows:
When combined with ventilation fans, the radiator can achieve stronger forced air circulation and faster heating performance.
The enlarged fin surface area significantly improves heat exchange performance, allowing rapid temperature increase in large spaces.
The steel tube structure supports various heating mediums, including high-temperature hot water and steam systems.
High frequency welding creates a strong connection between fins and tubes, preventing looseness, cracking, or fin loss during long-term operation.
The durable steel construction and stable welding process ensure reliable operation under demanding industrial environments.
The radiator can be customized according to customer requirements, including:
High frequency welded fin tube radiators are widely used in various industrial and commercial heating applications, including:
Due to its excellent performance, the high frequency welded fin tube radiator has become a preferred heating solution for large-area heating projects.
The High Frequency Welded Fin Tube Radiator combines advanced welding technology, high heat transfer efficiency, strong durability, and flexible customization. Its excellent performance makes it suitable for industrial heating, commercial buildings, and various high-temperature heat exchange applications.
For customers looking for a reliable industrial heating radiator, steel fin tube radiator, or steam heating solution, high frequency welded fin tube radiators provide an efficient and cost-effective choice.
